|Trade names:||Epoxy/Glass Fiber Reinforced|
|Available Shapes:||Sheet, Rod, Customized Parts|
|Color:||Yellow, Green, Light Green|
|Sheets Thickness:||0.5mm ~ 50mm,|
|Sheet Size:||1020×1220mm, 1020×2040mm|
|Rods Diameter:||10mm ~ 100mm|
About Epoxy Sheet:
Laminated material in sheets, made from modified non-alkaline glass fabric as a frotifier material and epoxy resin as a binder. In addition to its good mechanical and electro insulating properties. The material is self-extinguishing, classified as inflammable.
China Epoxy glass cloth laminated sheet for magnetic conductivity, with high mechanical strength, heat-resistance, with good magnetic permeability.suitable for making magnetic slot and wedge for motors.
- Extremely high mechanical strength
- Good dielectric loss properties
- Good electric strength properties, both wet and dry.
- High mechanical properties, and oil resistance and certain dielectric property.
- Thermal rating is 120, and temperature resistance : 150 °C
- Withstand a variety of chemical solvents and acid erosion

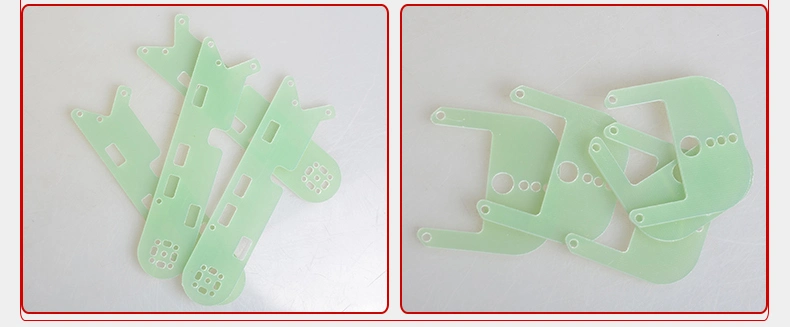

- Chemical machine parts
- General machine parts and gear, generators, Pads, base, baffle
- Generator,transformer, fixture, inverter, motor
- Electric insulation component
- G10/FR4 Glass Reinforced Epoxy - light green
- 3240 Glass Reinforced Epoxy - yellow
